Purpose-Built Off-Road Performance

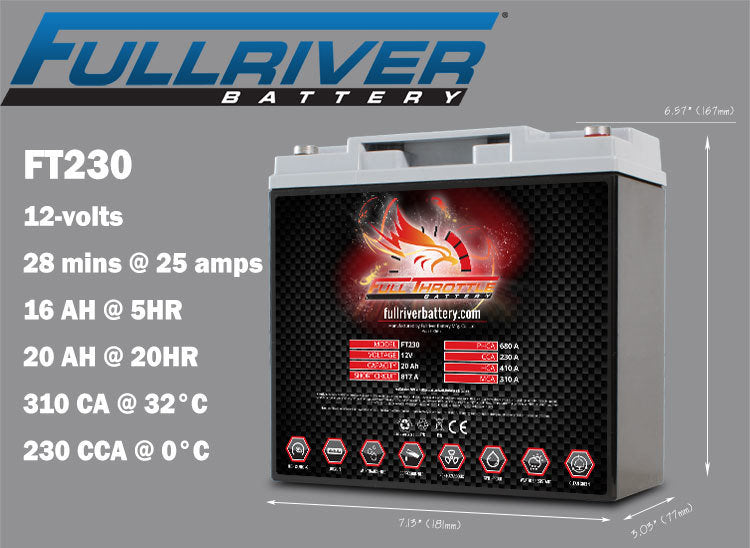

The Full Throttle Ft230 High Capacity Dual Purpose Agm Battery is a purpose-built battery & electrical product for off-road and powersports applications. Cycling Capacity 20 hour rate 20 Amp Hours Reserve Capacity @ 25 Amps 28 minutes @ 75 Amps 0 minutes Mechanical Specifications Group Size Terminal Type M6 Total Height 6.57″ (167 mm) Height 6.57″ (167 mm) Width 3.03″ (77 mm) Length 7.13″ (181 mm) Weight 15.4 lbs (7 kg) Case Type ABS Plastic – Flame Res Rating UL94-HB Discharge Table (Constant Current) Time Amps Rate 20 hr 1 0.05 CA 10 hr 1.4 0.1 CA 8 hr 2.2 0.13 CA 5 hr 3.4 0.25 CA 3 hr 5.1 0.33 CA 2 hr 6.7 0.5 CA 1 hr 13.2 1 CA Electrical Specifications Nominal Voltage 12 Volt Capacity @ 100 hour rate 22 AH Capacity @ 20 hour rate 20 AH Capacity @ 10 hour rate 18 AH Capacity @ 5 hour rate 16 AH CCA 230 CA or MCA 310 Short Circuit Current 817 Amps Internal Resistance 7m Ω Charge Voltages Battery Voltages Charge Stage 12V 24V 36V 48V Bulk 14.7 V 29.4 V 44.1 V 58.8 V Absorption 14.7 V 29.4 V 44.1 V 58.8 V Float 13.6 V 27.2 V 40.8 V 54.6 V TC Factor: -4mV/°C/cell Temperature Range Specifications Condition Recommended Maximum Storage -15°C to 50°C -40°C to 71°C Operation -15°C to 40°C -40°C to 71°C Charge with TC -15°C to 50°C -40°C to 71°C Charge without TC 0°C to 40°C -15°C to 50°C Terminal Torque Specifications Terminal Type ft-lbs in-lbs Nm AP | DT (AP) | M6 | M6M (stud) | TP07 (AP) | TP08 (AP) 4.2 – 6.0 50-70 5.6 – 7.9 FR45 6.0 – 7.5 70-90 7.9 – 10.1 M8 | LT 7.1 – 8.0 85-95 9.6 – 10.7 DT (stud) | M10M (stud) 9.2 – 10.4 110-125 12.2 – 14.0.
Product at a Glance
| Brand |
AGM Products |
| Product Type |
Battery & Electrical |
| Compatibility / Application |
Universal off-road, UTV, sandcar, or powersports application; verify exact fitment, dimensions, and installation requirements in the full product details. |
| SKU |
FULLTH-FT230 |
Compatibility / Application
Universal off-road, UTV, sandcar, or powersports application; verify exact fitment, dimensions, and installation requirements in the full product details.
Frequently Asked Questions
What application is this product intended for?
Universal off-road, UTV, sandcar, or powersports application; verify exact fitment, dimensions, and installation requirements in the full product details.
What should be verified before ordering?
Review the Full Product Details below for exact dimensions, specifications, fitment, options, and installation requirements.
Full Product Details
| Cycling Capacity |
| 20 hour rate |
20 Amp Hours |
| Reserve Capacity |
| @ 25 Amps |
28 minutes |
@ 75 Amps |
0 minutes |
| Mechanical Specifications |
| Group Size |
|
| Terminal Type |
M6 |
| Total Height |
6.57″ (167 mm) |
| Height |
6.57″ (167 mm) |
| Width |
3.03″ (77 mm) |
| Length |
7.13″ (181 mm) |
| Weight |
15.4 lbs (7 kg) |
| Case Type |
ABS Plastic – Flame Res Rating UL94-HB |
| Discharge Table (Constant Current) |
| Time |
Amps |
Rate |
| 20 hr |
1 |
0.05 CA |
| 10 hr |
1.4 |
0.1 CA |
| 8 hr |
2.2 |
0.13 CA |
| 5 hr |
3.4 |
0.25 CA |
| 3 hr |
5.1 |
0.33 CA |
| 2 hr |
6.7 |
0.5 CA |
| 1 hr |
13.2 |
1 CA |
| Electrical Specifications |
| Nominal Voltage |
12 Volt |
| Capacity @ 100 hour rate |
22 AH |
| Capacity @ 20 hour rate |
20 AH |
| Capacity @ 10 hour rate |
18 AH |
| Capacity @ 5 hour rate |
16 AH |
| CCA |
230 |
| CA or MCA |
310 |
| Short Circuit Current |
817 Amps |
| Internal Resistance |
7m Ω |
| Charge Voltages |
|
|
Battery Voltages |
| Charge Stage |
12V |
24V |
36V |
48V |
| Bulk |
14.7 V |
29.4 V |
44.1 V |
58.8 V |
| Absorption |
14.7 V |
29.4 V |
44.1 V |
58.8 V |
| Float |
13.6 V |
27.2 V |
40.8 V |
54.6 V |
| TC Factor: -4mV/°C/cell |
| Temperature Range Specifications |
| Condition |
Recommended |
Maximum |
| Storage |
-15°C to 50°C |
-40°C to 71°C |
| Operation |
-15°C to 40°C |
-40°C to 71°C |
| Charge with TC |
-15°C to 50°C |
-40°C to 71°C |
| Charge without TC |
0°C to 40°C |
-15°C to 50°C |
| Terminal Torque Specifications |
| Terminal Type |
ft-lbs |
in-lbs |
Nm |
| AP | DT (AP) | M6 | M6M (stud) | TP07 (AP) | TP08 (AP) |
4.2 – 6.0 |
50-70 |
5.6 – 7.9 |
| FR45 |
6.0 – 7.5 |
70-90 |
7.9 – 10.1 |
| M8 | LT |
7.1 – 8.0 |
85-95 |
9.6 – 10.7 |
| DT (stud) | M10M (stud) |
9.2 – 10.4 |
110-125 |
12.2 – 14.0 |
