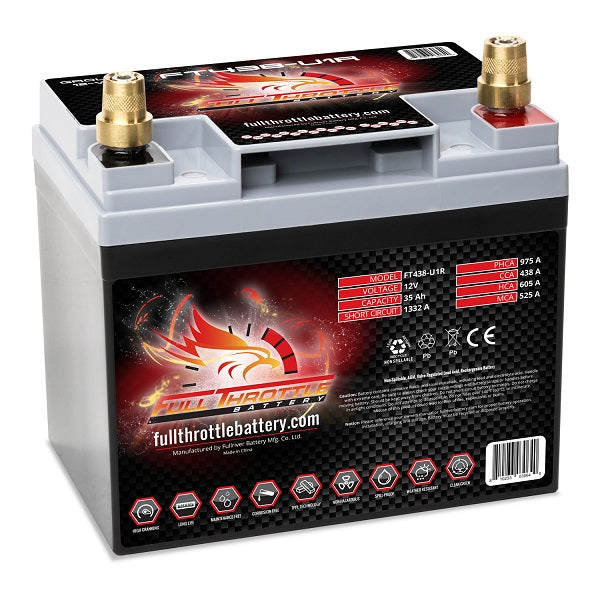

    Full Throttle Ft438-u1r High Capacity Dual Purpose Agm Battery

    Original price $244.99 - Original price $244.99
    Original price
    $244.99
    $244.99 - $244.99
    Current price $244.99
    Cycling Capacity
    20 hour rate 35 Amp Hours
    Reserve Capacity
    @ 25 Amps 60 minutes @ 75 Amps 11 minutes
    Mechanical Specifications
    Group Size U1R
    Terminal Type M6
    Total Height 6.57″ (167 mm)
    Height 6.57″ (167 mm)
    Width 5.16″ (131 mm)
    Length 7.72″ (196 mm)
    Weight 26.7 lbs (12.1 kg)
    Case Type ABS Plastic – Flame Res Rating UL94-HB
    Discharge Table (Constant Current)
    Time Amps Rate
    20 hr 1.8 0.05 CA
    10 hr 3.3 0.1 CA
    8 hr 3.8 0.13 CA
    5 hr 5.9 0.25 CA
    3 hr 8.7 0.33 CA
    2 hr 12.4 0.5 CA
    1 hr 22.2 1 CA
    Electrical Specifications
    Nominal Voltage 12 Volt
    Capacity @ 100 hour rate 39 AH
    Capacity @ 20 hour rate 35 AH
    Capacity @ 10 hour rate 32 AH
    Capacity @ 5 hour rate 29 AH
    CCA 438
    CA or MCA 525
    Short Circuit Current 1332 Amps
    Internal Resistance 9.4m Ω
    Charge Voltages
      Battery Voltages
    Charge Stage 12V 24V 36V 48V
    Bulk 14.7 V 29.4 V 44.1 V 58.8 V
    Absorption 14.7 V 29.4 V 44.1 V 58.8 V
    Float 13.6 V 27.2 V 40.8 V 54.6 V
    TC Factor: -4mV/°C/cell
    Temperature Range Specifications
    Condition Recommended Maximum
    Storage -15°C to 50°C -40°C to 71°C
    Operation -15°C to 40°C -40°C to 71°C
    Charge with TC -15°C to 50°C -40°C to 71°C
    Charge without TC 0°C to 40°C -15°C to 50°C
    Terminal Torque Specifications
    Terminal Type ft-lbs in-lbs Nm
    AP | DT (AP) | M6 | M6M (stud) | TP07 (AP) | TP08 (AP) 4.2 – 6.0 50-70 5.6 – 7.9
    FR45 6.0 – 7.5 70-90 7.9 – 10.1
    M8 | LT 7.1 – 8.0 85-95 9.6 – 10.7
    DT (stud) | M10M (stud) 9.2 – 10.4 110-125 12.2 – 14.0
