Purpose-Built Off-Road Performance

Upgrade your Sandcar / sandrail and custom off-road builds with the Weldon - Billet Fuel Filter - Weq1010cln, a purpose-built fuel system solution for off-road use. Weldon Billet Fuel Filters.

Product at a Glance

Compatibility / Application

Sandcar / sandrail and custom off-road builds

Included / Key Components

• Overall Length (in): 5.500 in. Outside Diameter (in): 2.375 in.
• Mounting Bracket Included: No Fittings Included: No Clamps Included: No Quantity: Sold individually.
• Features of Weldon billet aluminum filter assemblies:

Frequently Asked Questions

What application is this product intended for?

Sandcar / sandrail and custom off-road builds

What should be verified before ordering?

Review the Full Product Details below for exact dimensions, specifications, fitment, options, and installation requirements.

Full Product Details

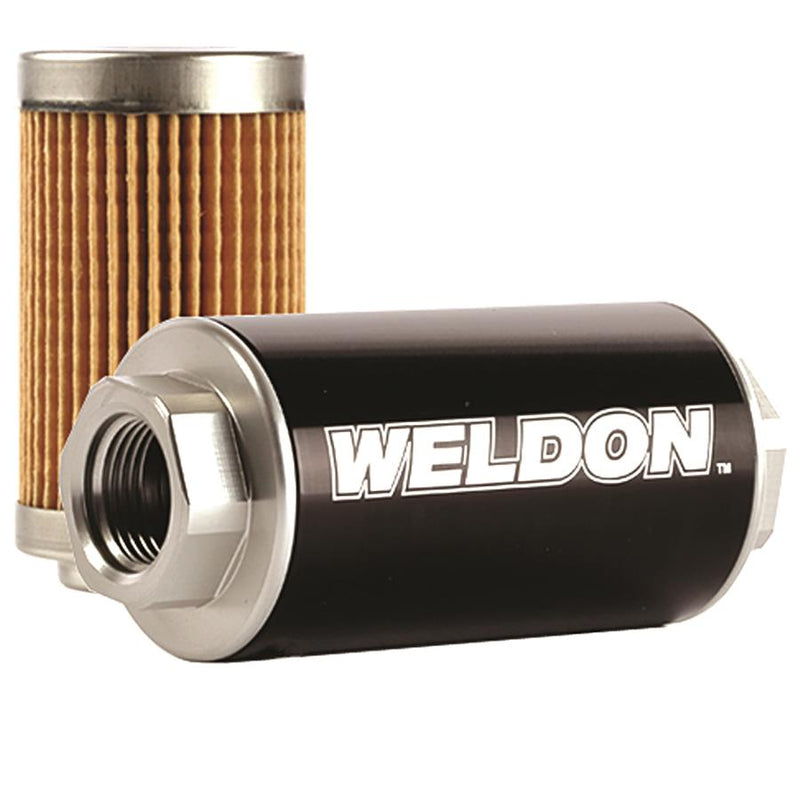

Weldon Billet Fuel Filters

Manufacturer’s Part Number: WEQ1010CLN

Fuel Filter Style: Inline
Inlet Quantity: One
Inlet Size: -10 AN O-ring
Inlet Attachment: Female threads
Outlet Quantity: One
Outlet Size: -10 AN O-ring
Outlet Attachment: Female threads
Filter Element Included: Yes
Smallest Particle Filtered: 10 microns
Filter Element Material: Cellulose
Filter Housing Material: Billet aluminum
Filter Housing Finish: Black/Clear anodized

Overall Length (in): 5.500 in.
Outside Diameter (in): 2.375 in.

Mounting Bracket Included: No
Fittings Included: No
Clamps Included: No
Quantity: Sold individually.

Weldon billet fuel filters trap contaminants you don’t want in your fuel.
These assemblies feature Mil-Spec anodizing, along with port configurations
and filter media to fit most any application.

Features of Weldon billet aluminum filter assemblies:

* Cellulous or stainless steel elements
* Choice of 10, 40, or 100 micron filters
* Multiple options for O-ring port sizes
* Over 60 sq. inches of filtering area
* Radiused end caps to improve fuel flow within filter
* Black/clear MIL-SPEC anodizing for a long lasting high-performance finish
* Minimal pressure drop
* Replacement filter elements available
