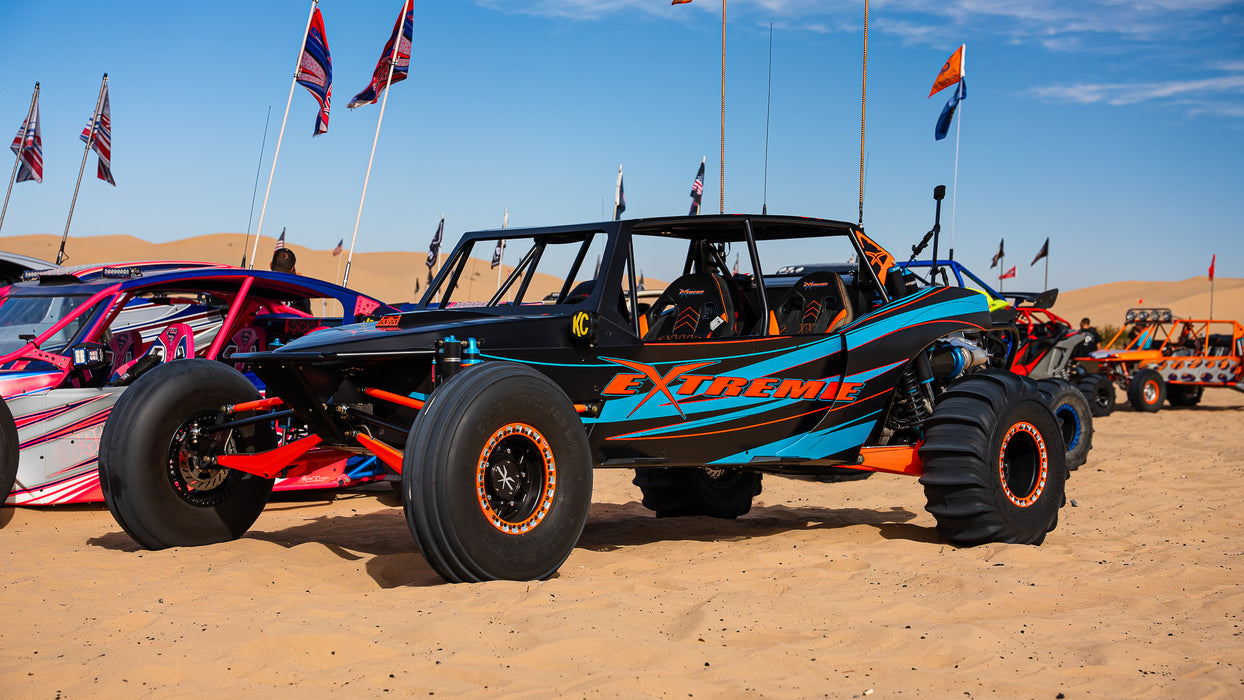

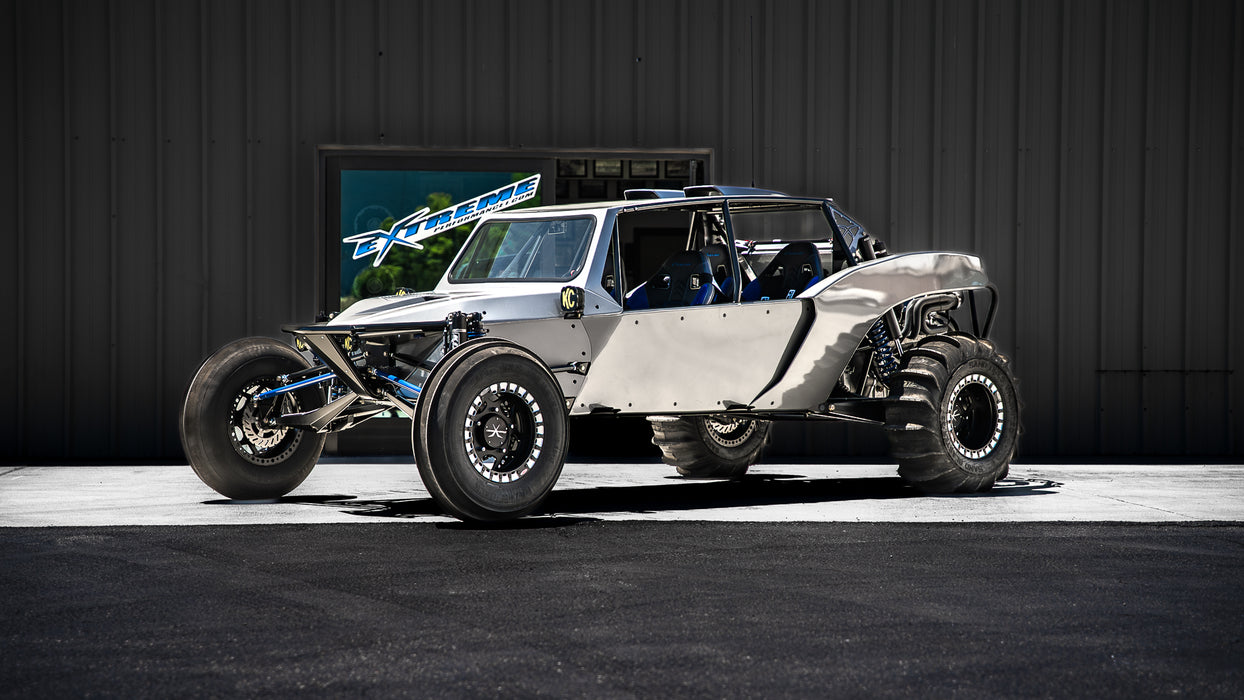

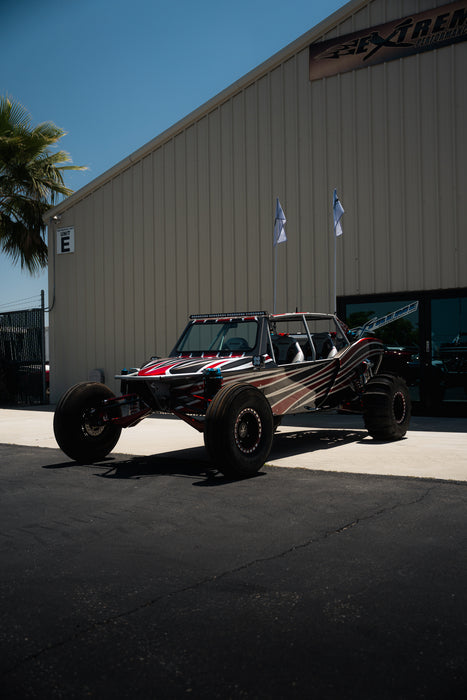

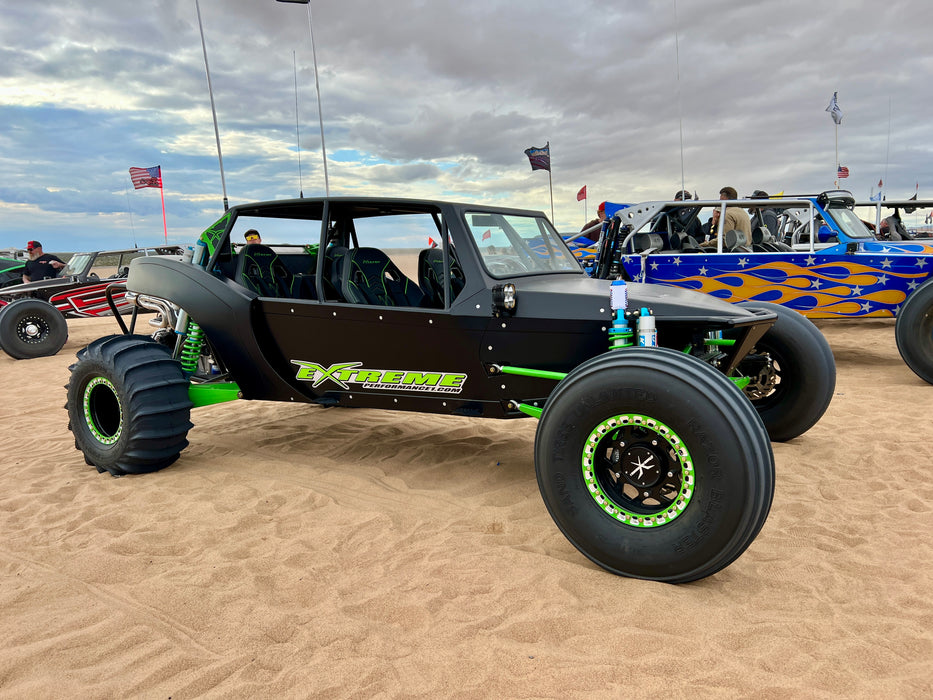

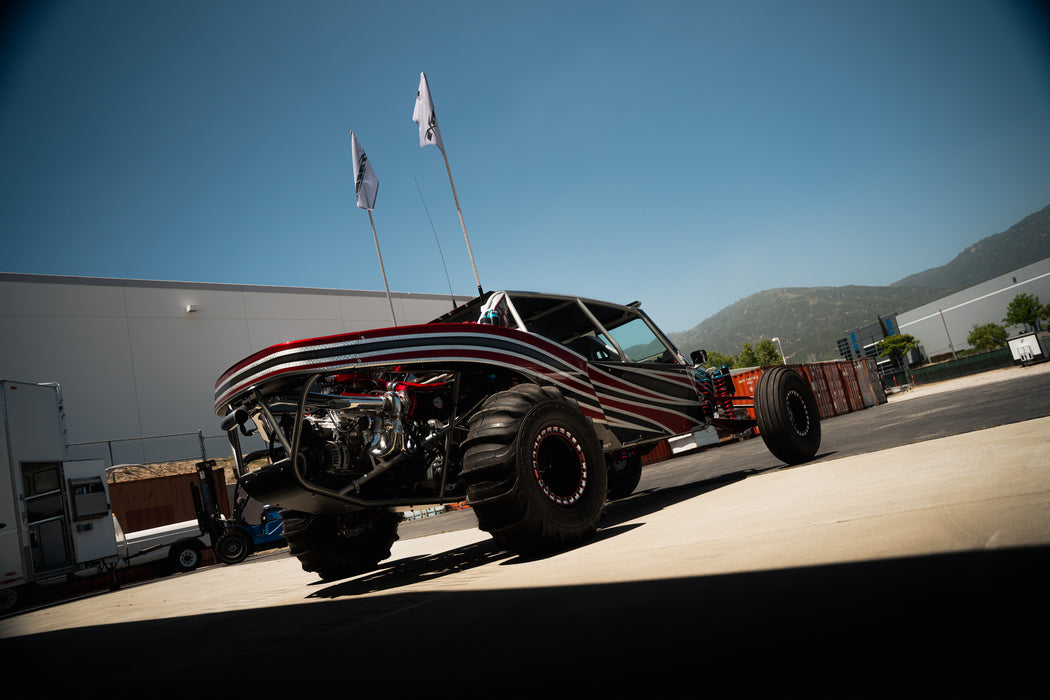

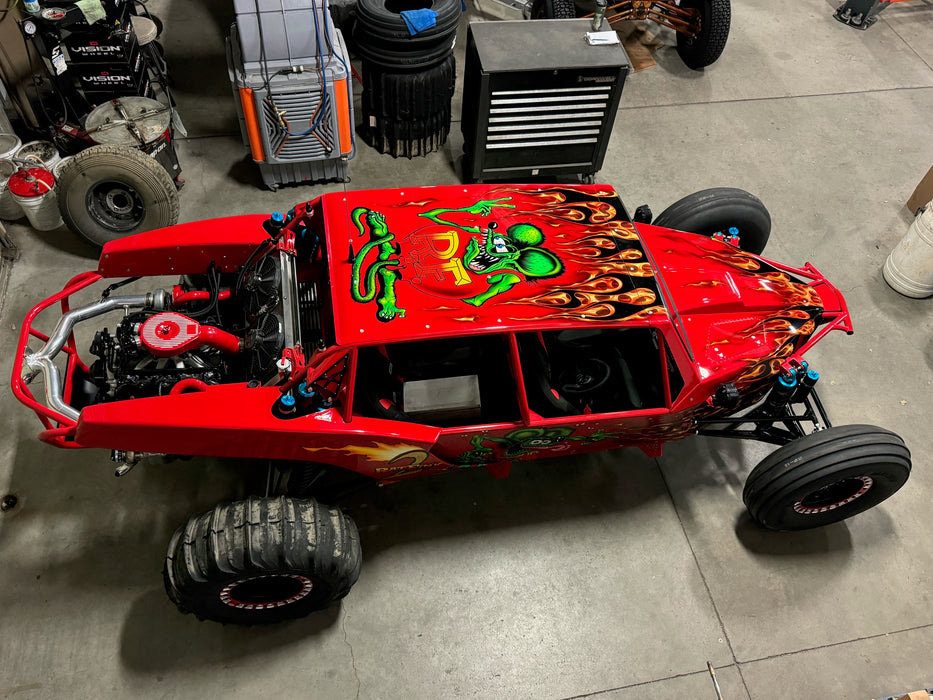

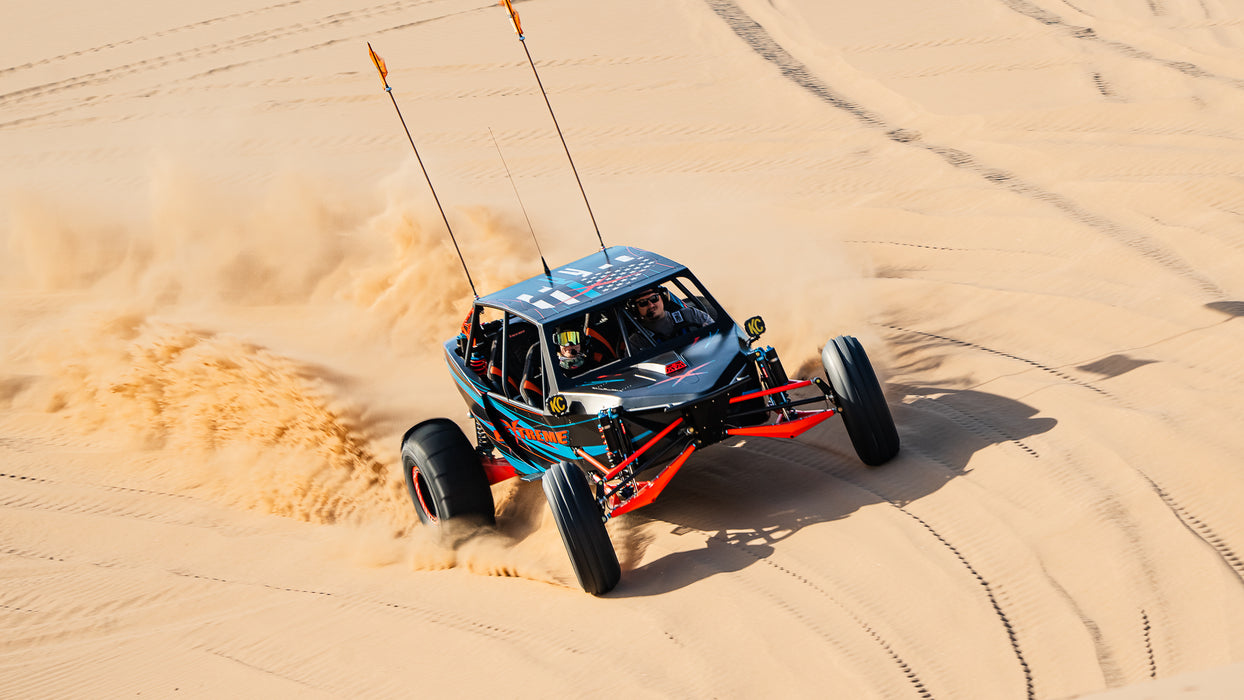

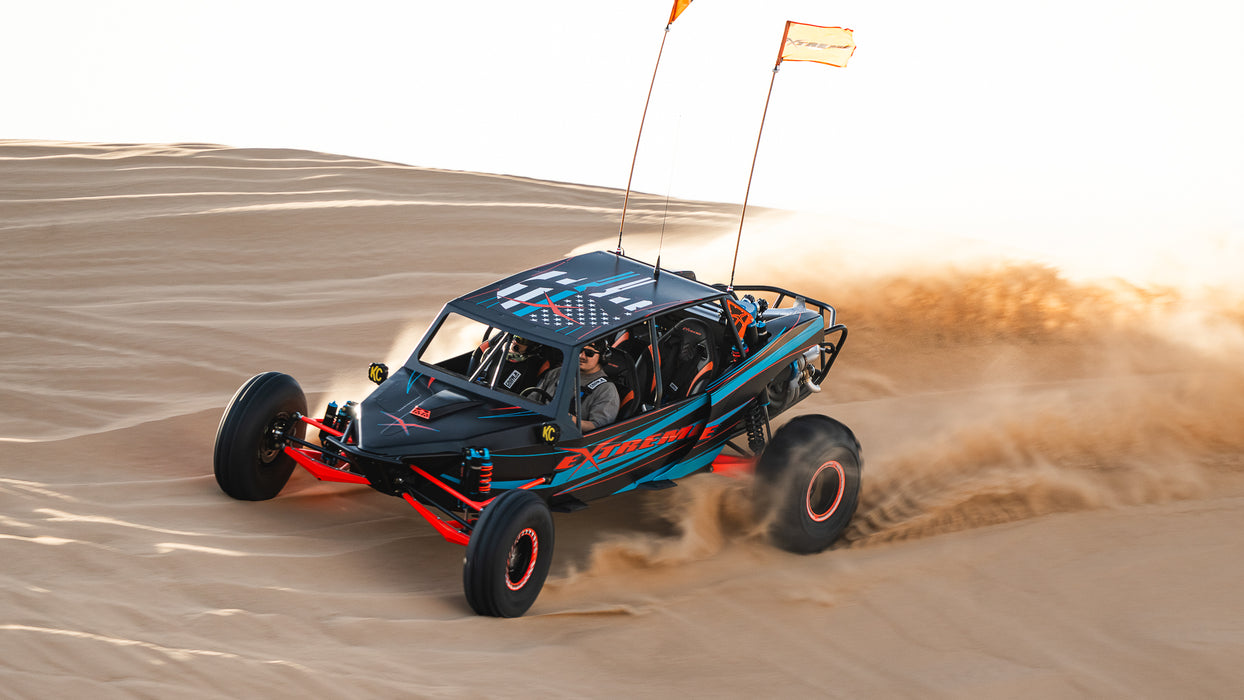

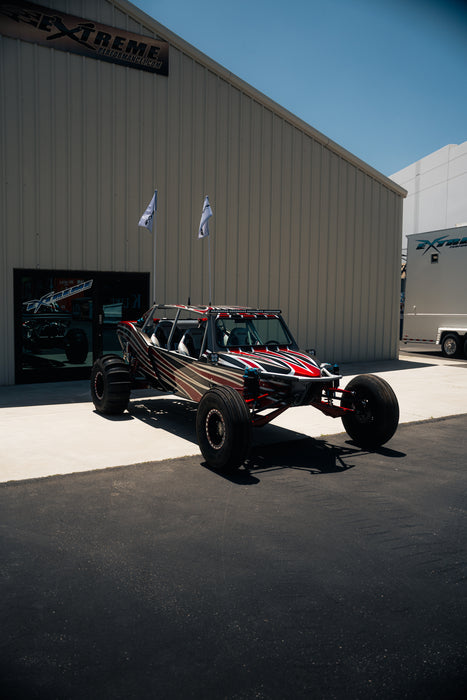

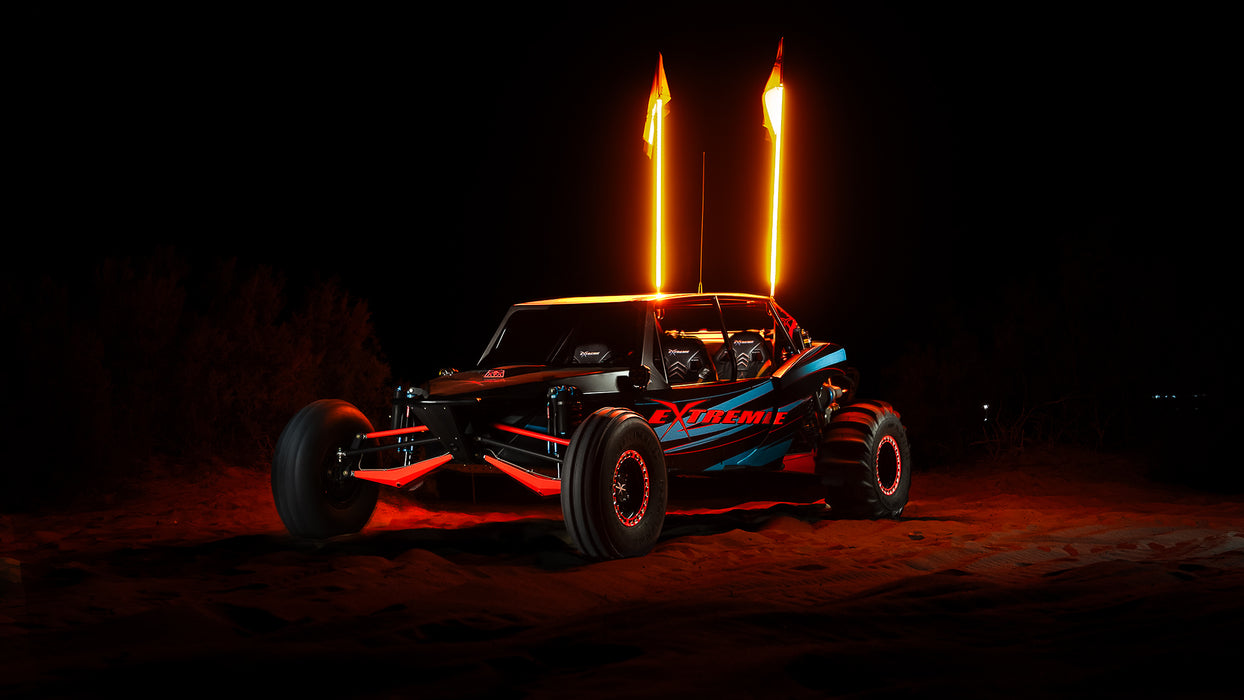

DR1 SANDCAR TURN-KEY
Dimensions: Wheel Base - 148"
Front Width - 87" @ Ride Height
85.5" w/ Front end Strapped
Rear Width - 92" w/ Paddle Tires
Height - 61"
Length - 188" Tip to Toe
Weight - 2436lbs Non Turbo

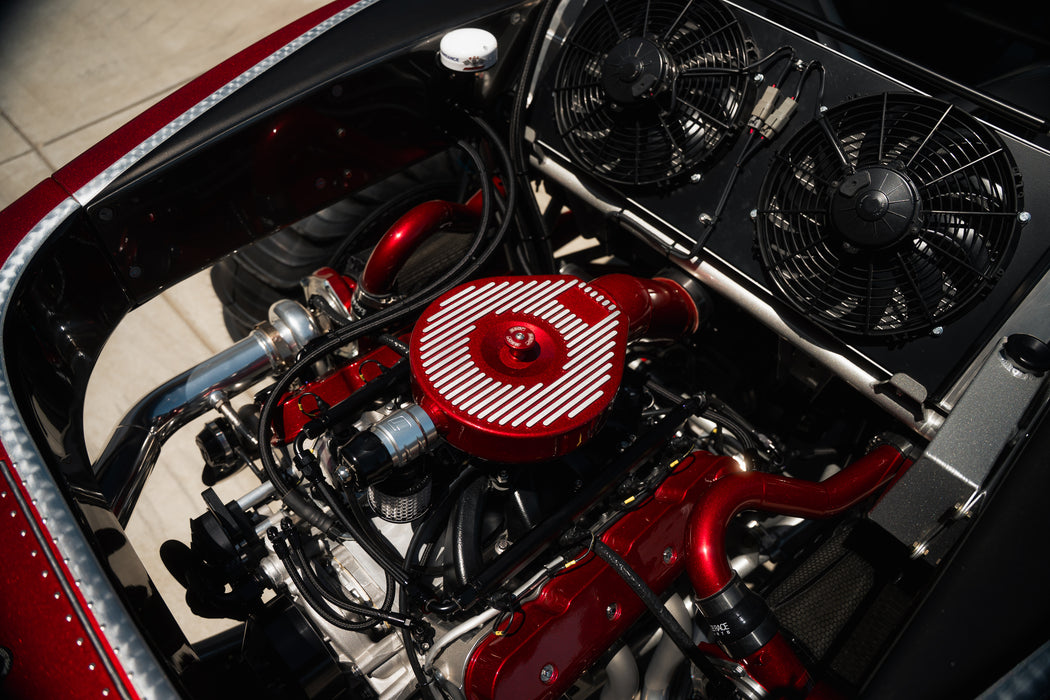

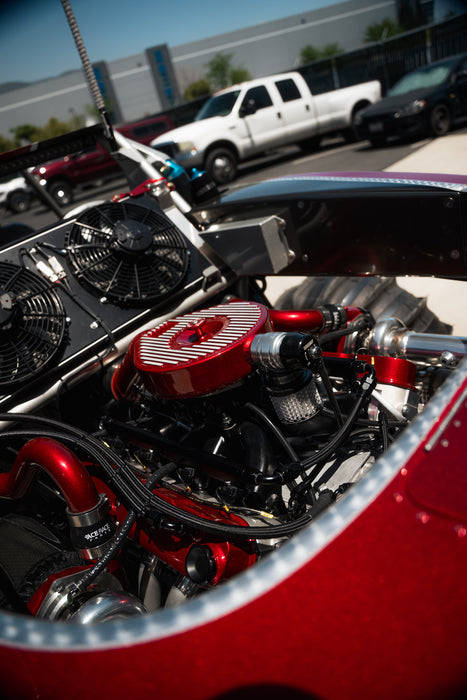

Motor Package: Extreme LS3 (Approx 500hp) Holley ECU
Transmission: Weddle / Mendeola S4S / Chevy Bell Housing / Side Mount Starter
Extreme Shifter
Chassis Includes: Chromoly Plate Lower Arms (Your color choice)
Chromoly Tube Upper Arms (Your color choice)
Chromoly Spindles (2” Hollow) (Your color choice)
Chromoly Tie Rods (Your color choice)
Chromoly Plate Trailing Arms (Set up for Micro Stub)
Solid 6061 T6 Solid Aluminum Floors
6061 T6 Aluminum Skid Plate
Passenger Foot Bar
Aluminum Fuel Tank Behind Seat Dual Fill Caps
Body Includes: Side Panels, Roof, Hood, Center Console, Flat Dash and Simulated Rear Fenders

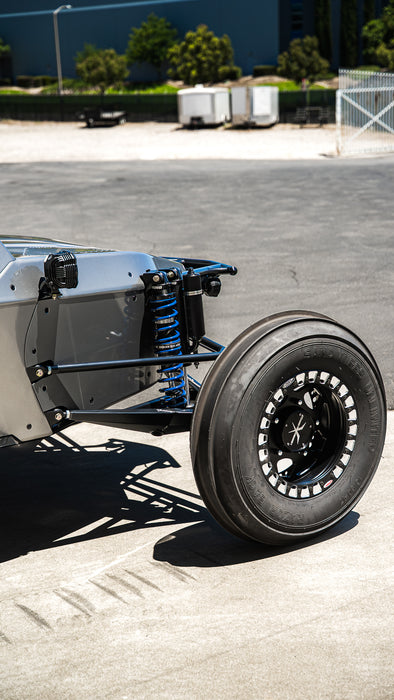

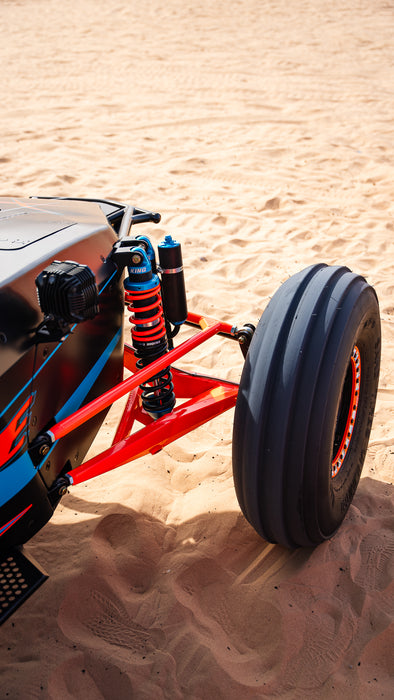

Suspension: Front: King 2.5 Coil Over
King 2.5 – 3 Tube Bypass
Rear: King 2.5 Coil Over
King 3.0 – 3 Tube Bypass
Brakes: Extreme 934 Stub Axle / 4 Piston Brake Kit (Black Ano)
Extreme Front 2” Hubs / 4 Piston Brake Kit (Black Ano)
934 Polished CV Joints
300m Axles
Steering: 400w Electric Power Steering
Std Components: 4 - Jet Trim Buckets / Rear Bench Seat (Your color choice)
2 – Crow Safety 3x3 Padded 5 Point Seatbelts (Your color choice)
2 – Crow Safety 3x2 Padded 4 Point Seatbelts (Your color choice)
2 – 15x7 OMF Beadlock Wheels
2 – 15x12 OMF Beadlock Wheels

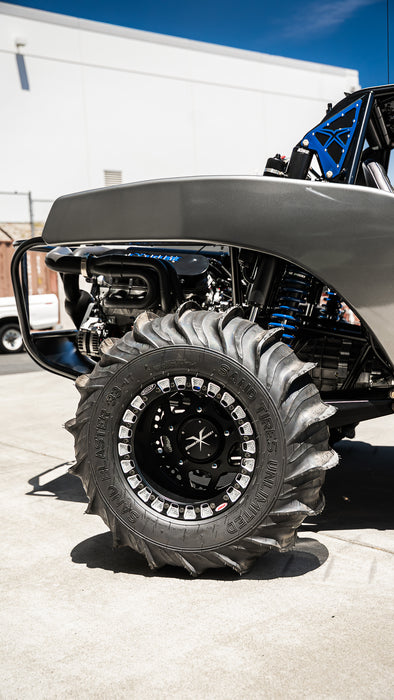

2 - STU 16.50 – 15 #2 Rear Paddles
2 -STU 10.75 – 15 Razor Blaster Front Tires
Wilwood Hanging Pedals & Clutch
Jamar Floor Mounted Throttle Pedal
2 - Standard Gauges
2 – Indicator Lights
Sealed Switches (Can upgrade to Switch Works)
2 – LED Headlights
1 - LED Whip
Full Throttle 410 Battery w/ Ground Break
Steering Wheel w/ Quick Release
Axia Rear View Mirror (Black)

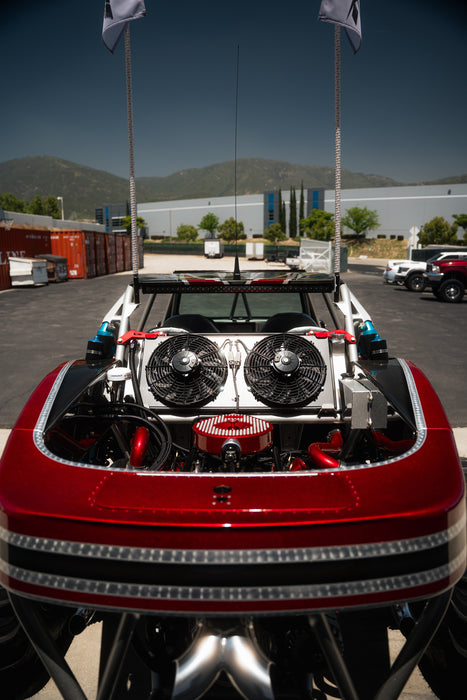

CBR Aluminum Radiator
2 - Spal Electric Fans
1 – Drivers Side Seat Slider
Upgrade Options: 415 Twin Turbo Engine Upgrade $35,000
Oil Cooler Setup $2000
Trans Cooler Setup $2500
5 Speed Trans $1000
Electronics: Holley 7” Digital Dash $1400 Recessed In Dash
Holley 6.86 Pro Dash $1750 Recessed In Dash
Holley 12.3 Pro Dash $2850 Recessed In Dash
4 Person PCI Race Radio $2800 Installed
Upgrade to Trax Headsets $400
SSV Switch Works Alpha 12 $1,149
LED Bar Option (based on light choice)
UnderGlow (4 KC Clones) $862 Installed
Add Second Battery $300
Body: Curved Windshield $2200
Scoop Hood Upgrade $1500
3D HOOD Scoop $850
Rear Wrap Around Tail Section no lights $2700
Add Lights to Tail Section $800
3D Welded Sides On Roof $550
Shocks: Black Shock Bodies w/ Fin Res. $1850
Change Ano Color on All Shock Caps $1600
Wheels: Inner Wheel Reinforcing Ring $90 each
17” Wheel Upgrade $150 each
UpGrade to Bolt in Center Wheels (3 Piece) $2000 set
Razor Master 12.50 - 17” Front Tire Upgrade (2) $250
35.5 – 17“ Sand Master Rear Tire Upgrade (2) $800
Interior: CNC Stitch Pattern Upgrade to Seat $100 per seat
Add Heaters to Seats $260 per seat (Installed)
Add Zipper Bag to Seat $100 per seat
Seat Bags $90 each
Vinyl Wrap Dash and Console (Jet Trim) $1800
Vinyl Cover Side Panels and Roof Custom $995
